SS54

Quantity	excl. VAT	VAT incl.
1 - 9	0.33$	0.33$
10 - 24	0.32$	0.32$
25 - 49	0.30$	0.30$
50 - 99	0.28$	0.28$
100 - 249	0.28$	0.28$
250 - 333	0.25$	0.25$

Quantity	U.P
1 - 9	0.33$	0.33$
10 - 24	0.32$	0.32$
25 - 49	0.30$	0.30$
50 - 99	0.28$	0.28$
100 - 249	0.28$	0.28$
250 - 333	0.25$	0.25$

Delivery in 2-3 days, with postal tracking!

Quantity in stock : 333

Set of 1

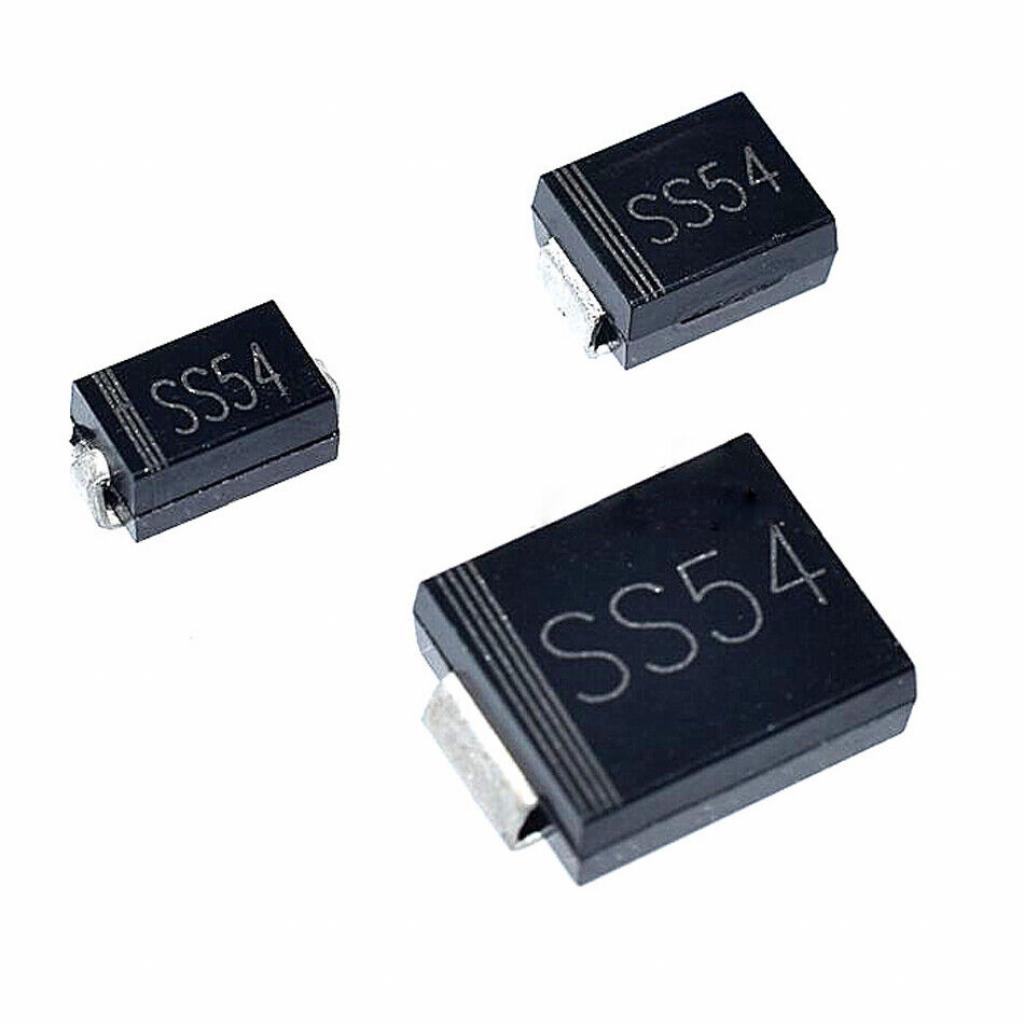

SS54. Quantity per case: 1. Dielectric structure: Anode-Cathode. Semiconductor material: Sb. Forward current (AV): 5A. IFSM: 100A. MRI (max): 20mA. MRI (min): 200uA. Marking on the case: SS54. RoHS: yes. Assembly/installation: surface-mounted component (SMD). Housing: DO-214. Housing (according to data sheet): DO-214AB (SMA) 7.11x6.22mm. Operating temperature: -55...+125°C. Threshold voltage Vf (max): 0.6V. Forward voltage Vf (min): 0.6V. VRRM: 40V. Number of terminals: 2. Function: Schottky Barrier Rectifier Diode, Surface Mount. Spec info: Ifsm 100Ap (t=8.3ms). Quantity in stock updated on 05/04/2025, 18:25.
