BAS40-06

Quantity (Set of 10)	excl. VAT	VAT incl.
1 - 4	0.75$	0.75$
5 - 9	0.71$	0.71$
10 - 24	0.67$	0.67$
25 - 49	0.64$	0.64$
50 - 99	0.60$	0.60$
100 - 149	0.56$	0.56$
150 - 282	0.52$	0.52$

Quantity (Set of 10)	U.P
1 - 4	0.75$	0.75$
5 - 9	0.71$	0.71$
10 - 24	0.67$	0.67$
25 - 49	0.64$	0.64$
50 - 99	0.60$	0.60$
100 - 149	0.56$	0.56$
150 - 282	0.52$	0.52$

Delivery in 2-3 days, with postal tracking!

Quantity in stock : 2816

Set of 10

BAS40-06. Forward current (AV): 0.2A. IFSM: 0.6A. Housing: SOT-23 ( TO-236 ). Housing (according to data sheet): SOT-23 ( TO236 ). VRRM: 40V. Cj: 5pF. Trr Diode (Min.): 5 ns. Semiconductor material: Sb. Function: Schottky diode. Surface mount. Marking on the case: 46. RoHS: yes. Assembly/installation: surface-mounted component (SMD). Operating temperature: -55...+150°C. Threshold voltage Vf (max): 1V. Forward voltage Vf (min): 0.38V. Quantity per case: 2. Number of terminals: 3. Dielectric structure: common anode. Spec info: IFSM--600mA t=1s. Quantity in stock updated on 18/04/2025, 18:25.

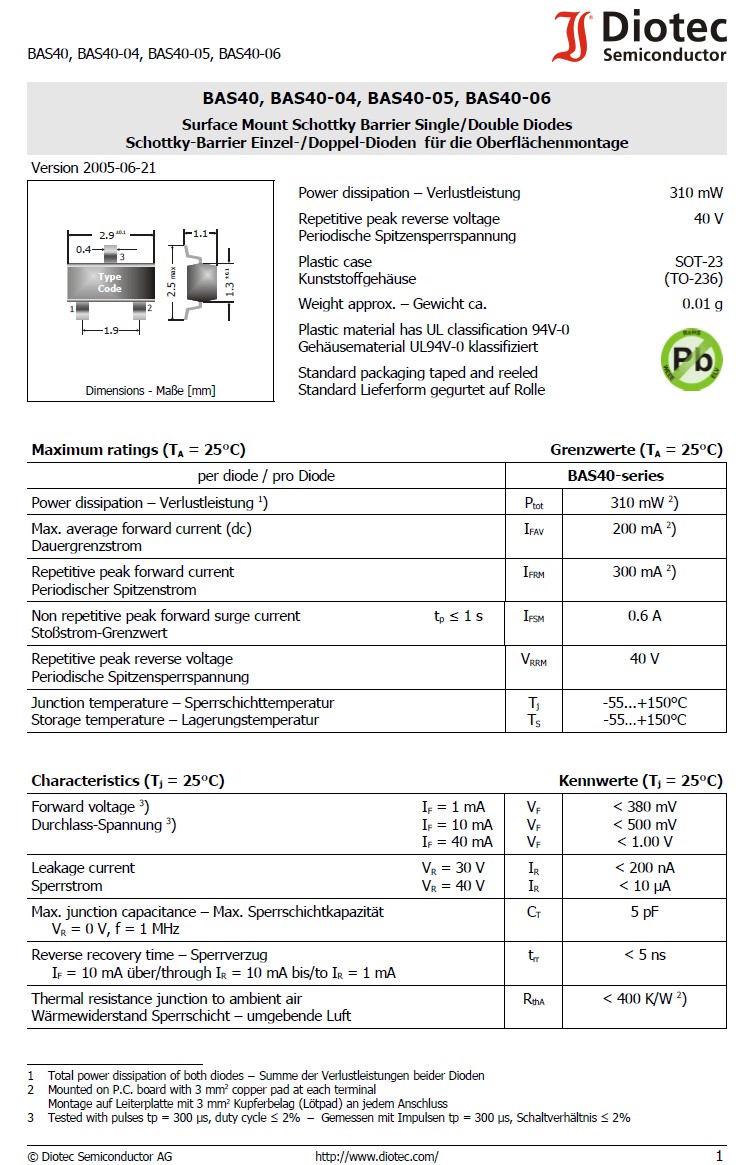

Technical documentation
